For Sale · Private Listing · Atlanta, GA

Steel Mono-Stringer
Switchback Staircase

Professionally fabricated carbon steel mono stringer switchback stair with white ash wood treads, LED lighting, and 12mm tempered glass panel railing. Never installed — project change of plans. Full engineering drawings and installation plans included.

Asking $18,000 OBO · Local pickup · Atlanta, GA
Call or Text to Inquire Send an Email

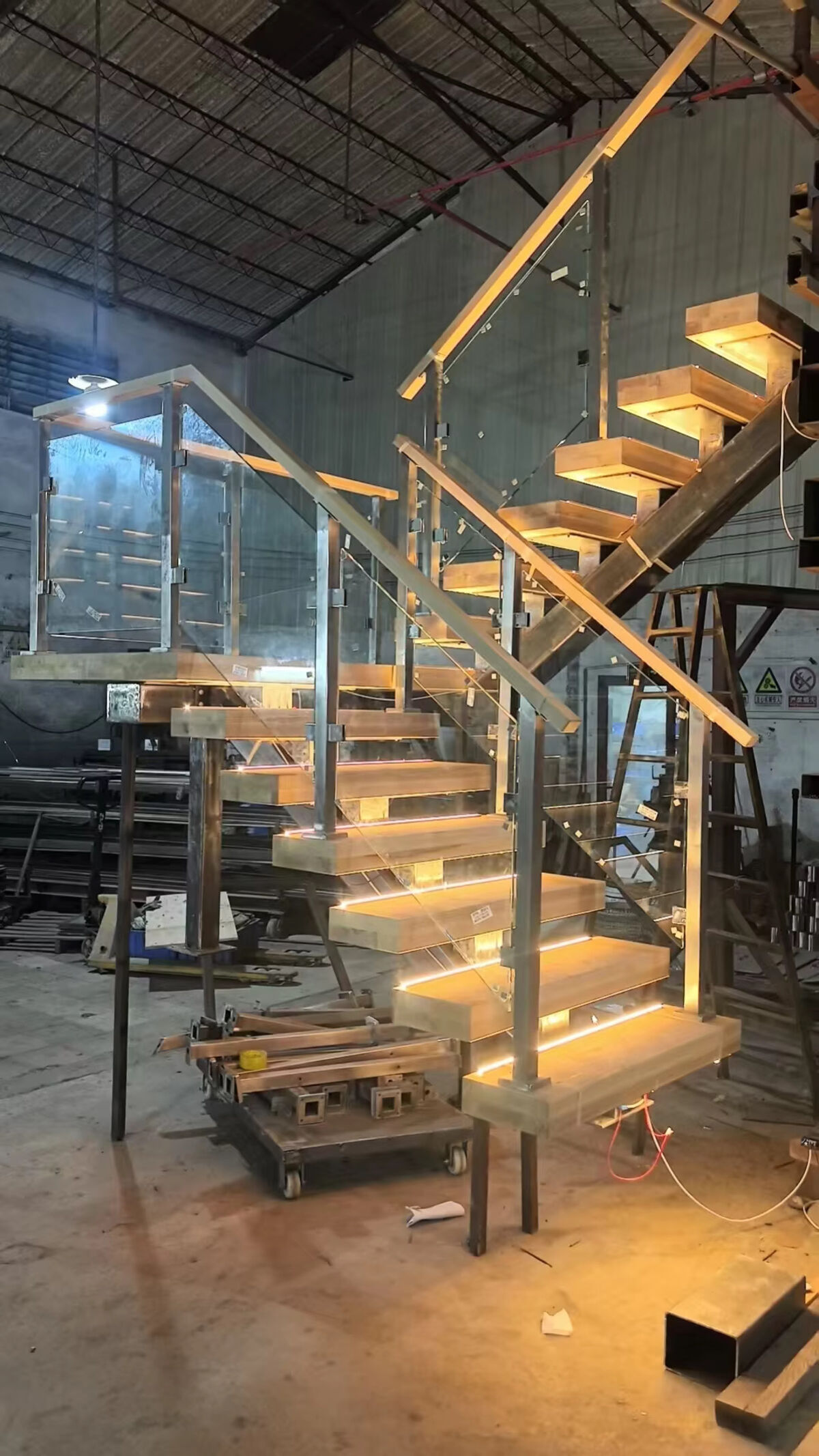

Steel switchback staircase — trial assembly at fabrication warehouse
Actual staircase · Trial assembly at fabrication warehouse · Pre-powder coat
Location 📍 Atlanta, GA — Local pickup preferred · Freight possible for serious buyers
Notable Features
✨
LED Treads
Every stair tread has an integrated LED light bar for dramatic under-tread lighting — fully controllable color and intensity.
🪵
Solid American Ash
95mm (3¾″) thick solid white ash treads — not veneered, not engineered. Ash Wood painted finish with exceptional hardness and grain character.
🔲
12mm Tempered Glass
Crystal-clear 12mm tempered glass railing panels with 304 stainless steel posts — open, airy feel with commercial-grade safety.
⚙️
Heavy-Gauge Steel
200×150×5mm carbon steel mono stringer — over-engineered for residential use. Powder coated gloss black for a refined industrial finish.
Steel staircase before powder coat — trial assembly at fabrication warehouse
Before black powder coat Raw carbon steel and white ash treads · Trial assembly at fabrication warehouse

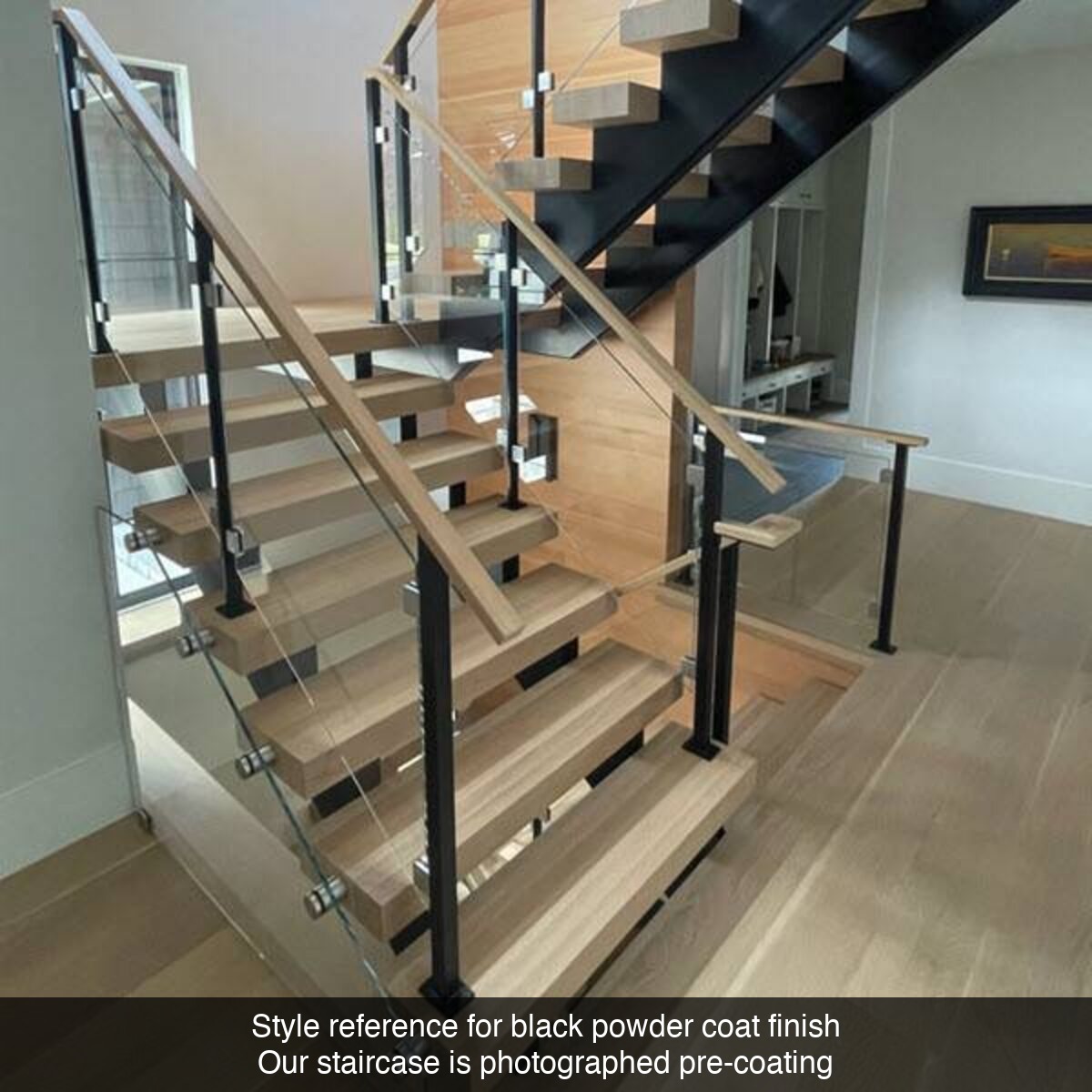

Style reference — powder coat black finish with glass railing and LED-lit treads
After · Style Reference Only Not this staircase · Illustrates powder coat black finish · Glass railing
Total Rise
108″ / 9′
Footprint
100″×85″
Riser / Tread
7¾″
Clear Width
36″
Condition
New
02

Materials

Stringer 200×150×5mm Carbon Steel, Powder Coat Black
Tread Support 8mm Carbon Steel Plate, Powder Coat Black
Landing Post 100×100×4mm Carbon Steel, Powder Coat Black
Railing Posts 50×50mm 304 Stainless Steel, Powder Coat Black
Glass Panels 12mm Tempered Clear Glass
Treads 95mm White Ash Wood w/ LED Light Bar
Handrail 50×50mm Solid White Ash Wood
Finish Ash Wood Painting · 304 S.S. Powder Coat Black
03

Dimensions

Total Rise 108″ (9′-0″)
Floor Footprint 100″ × 85″
Riser Height 7¾″
Tread Depth 10″
Tread Width 40″ lower flight · 44″ upper flight
Clear Width 36″ both flights · IRC compliant
Handrail Height 38″
Configuration Switchback / Landing · ~14 Steps
04

Included Documents

📄
Official Shop Drawing · PDF
Wonder Homebuild Full Drawing Set
Complete 2-page professional shop drawing package (WH-W66) by Wonder Homebuild. Includes Elevations A, B, C, D and floor plan with full dimensions.
Download PDF
Elevation overview — full switchback staircase
Elevation B · Full Stair Elevation

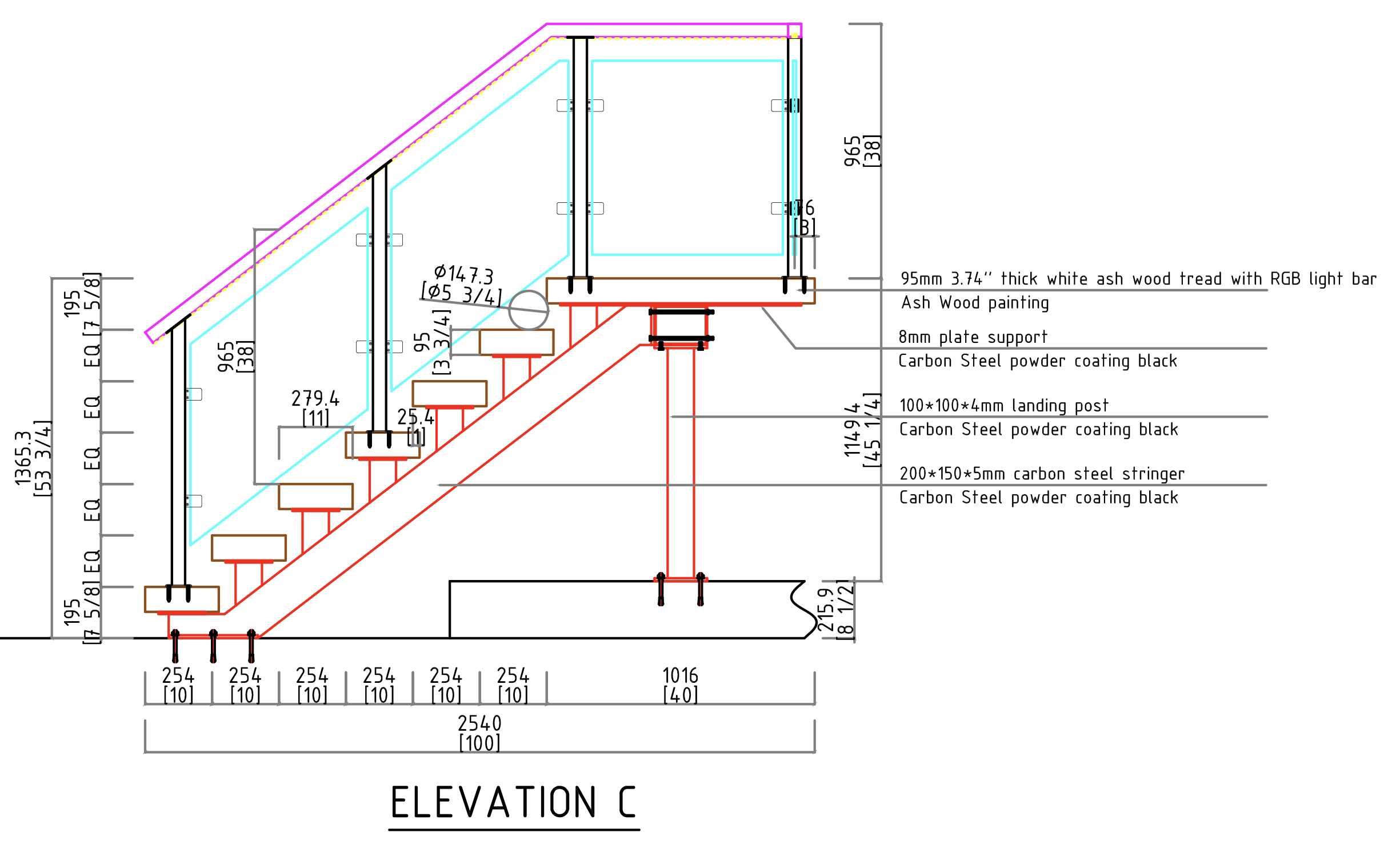

Elevation C — lower flight with material callouts
Elevation C · Lower Flight

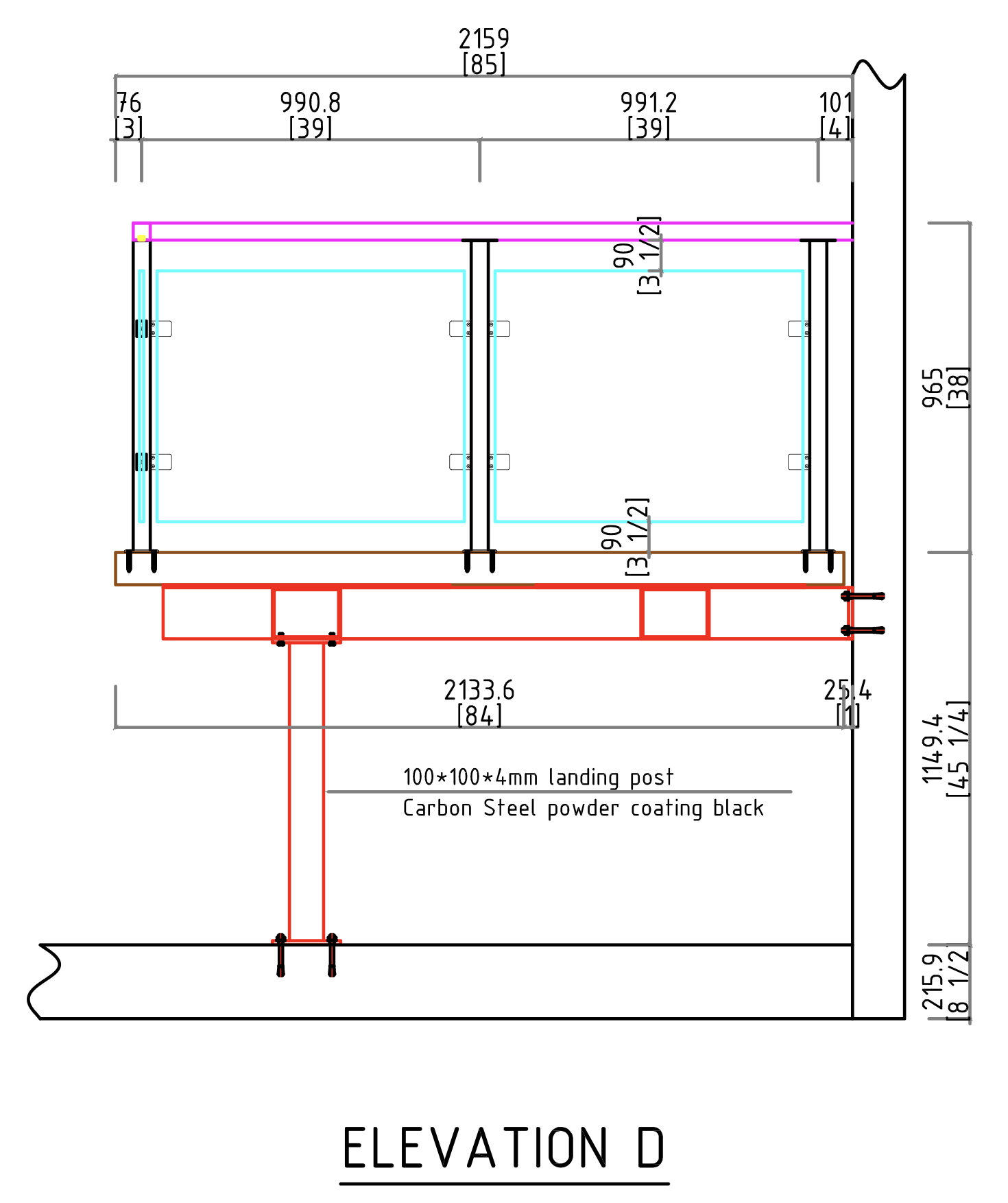

Elevation D — landing detail
Elevation D · Landing
Floor plan with tread layout and landing dimensions
Floor Plan
05

Details & Contact

This staircase was custom-designed by a professional fabrication shop and built to exact engineering specifications for a residential installation. The project changed direction before it could be installed — so this is a brand new, never-installed staircase going to a new home.

The switchback configuration with mid-flight landing makes it ideal for basement-to-main-floor or split-level applications. The 200×150×5mm carbon steel mono stringer is heavy-duty, powder coated black, and paired with 95mm solid white ash treads — each with embedded LED lighting for a dramatic effect at night.

The railing system uses 50×50mm 304 stainless steel posts (also powder coated black) with 12mm tempered clear glass panels and a matching solid ash wood cap rail. The complete package — stringer, treads, railing, glass, hardware — transfers with the sale.

All engineering drawings (elevation, floor plan, materials spec sheet) are included. Atlanta-area pickup strongly preferred. For a serious buyer outside the area, freight can be arranged at buyer's cost.

Switchback · Landing Carbon Steel Stringer White Ash Treads LED Lighting 12mm Tempered Glass 304 S.S. Posts Powder Coat Black Never Installed Drawings Included Atlanta, GA

Get in Touch

Serious inquiries only · Call or text preferred

📱
Call or Text (404) 492-9553
✉️
Email friable.pergola47@icloud.com
📍
Pickup Location Atlanta, GA · Local pickup preferred
💰
Asking Price $18,000 OBO

→ Full engineering drawings sent on request
→ All hardware, treads & railing included
→ Freight available at buyer's cost
